Automatic Pre coating Film Laminating Machine

The latest design and operation idea are used in multifunctional Automatic Pre coating Film Laminating Machine by NEW STAR China manufacuturer. Call today to discuss your customization requirements. Sure you’ll find the best suitable product here.

Model:YFMD-850/1050/1200/1200-L

Send Inquiry

Product Description

Our factory specializes in manufacturing of Multifunctional Automatic laminating machine, NEW STAR was set up formally in2010, as one of the professional China Multifunctional Automatic laminating machine manufacturers and China Multifunctional Automatic laminating machine suppliers, we are strong strength and complete management. Also, we have own exporting license. We mainly deal in making a series of Multifunctional Automatic laminating machine and so on.

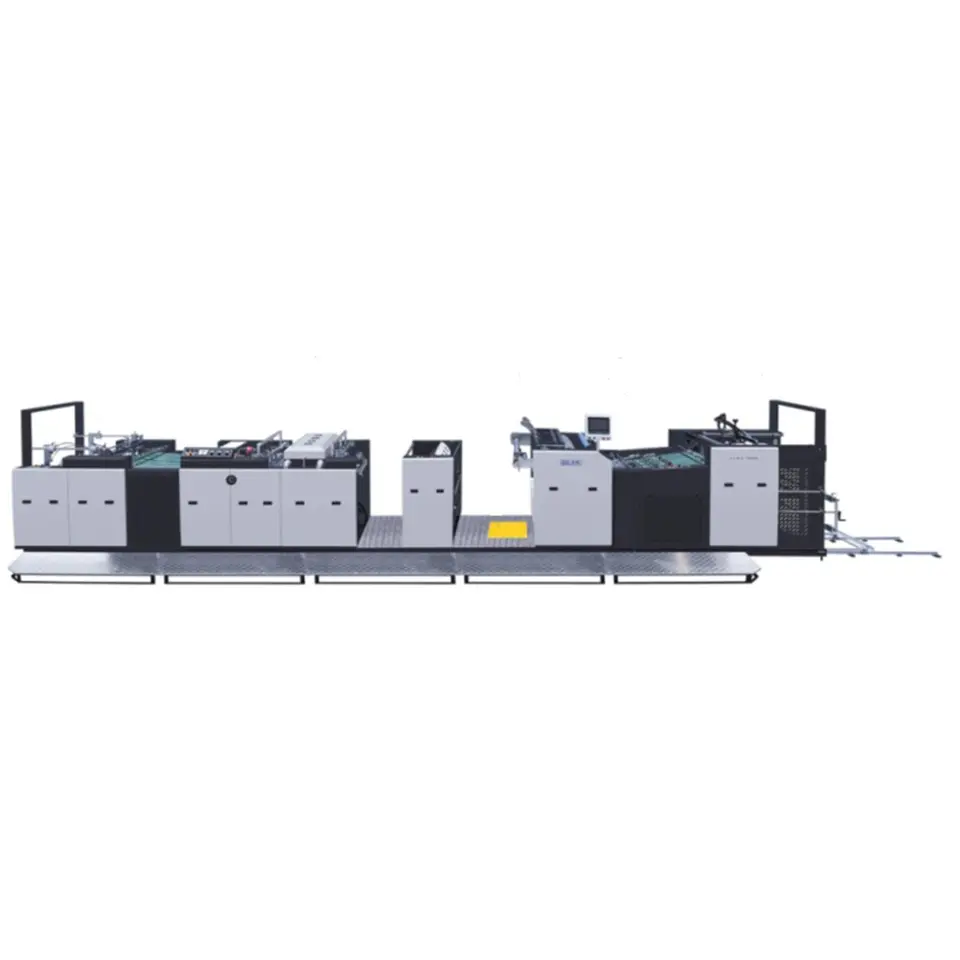

Automatic Pre coating Film Laminating Machine

The latest design and operation idea are used in multifunctional automatic laminating machine by NEW STAR China manufacuturer.
Call today to discuss your customization requirements. Sure you’ll find the best suitable product here.
The YFMD-A series is a high-speed pre-coating model launched by our company, which is suitable for posters, books, information
albums, posters, color boxes, color box packaging, handbags, etc.

Product Parameter (Specification)

Item	Data	Data	Data
Max Laminating Paper	850*1050mm	1050*1050mm	1200*1050/1450mm
Min Laminating Paper	290*290mm	300*300mm	420*420mm
Overlap error	±2mm	±2mm	±2mm
Laminating speed	Chain knife: 0-60m/min	Chain knife: 0-60m/min	Chain knife: 0-60m/min
Power	35kw	38kw	38kw
Electricity	18kw/h	20kw/h	20kw/h
Overall dimensions	860018002000mm	860020002000mm	860022002000mm
Total weight	7500kg	8000kg	8500kg

Product Feature And Application

·SCHNEIDER frequency converter is equipped for infinitely variable speed, and the operator can change the machine's speed easily and guarantee the machine's running stable.
·One-piece construction design makes the machine run more stably, and lengthens the machine's lifetime.
·Manual paper feeding.
·Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
·High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
·Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
·Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
·Film perforating wheel perforates film edge to make the separation of laminated paper easy.
·Laminated paper is rolled up automatically by the winding spindle. Winding speed is adjustable upon.

Product Details

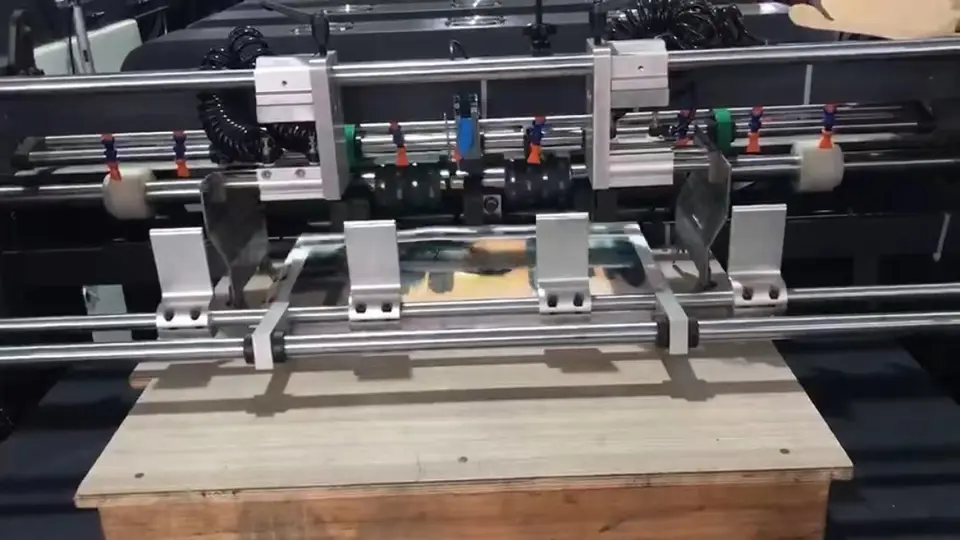

Automatic paper feeding system.	Dust removal and front guild system	Laminating system
1: pre-loading feeder 2: non-stopped feeder 3: big format feeder 4: sucking flat table 5: front guild 6: Servo has high precision 7: Anti-clutter magnet safety device	1: Mirror iron roller 2: Heating dust removal 3: Scraper cleaning powder 4: Synchronous belt drive	1: electromagnetic heating 2: film straigt roller 3: temperature meteroutside 4: automatic pressure 5: paper lacking and breaking system 6: Double-sided lamination (optional)

UV Dryer	Separation system	automatic paper stacker
1: sucking and outside air system 2: The UV part adopts 8-12KW adjustable electronic light source, which greatly improves the safety performance compared with the traditional voltage source light source, and can adjust the brightness of the light source automatically according to the change of the running speed of the machine, which can be changed from 30% to 100%. The average energy consumption is saved by more than 30%.	1: back perforating system 2: high speed rotation knife 3: anti-curvev system 4: pneumatic perforating cutting system 5: slot for the separating roller	1: vacuum sucker flat ,belt width 10cm 2: non-stop feeding 3: 850mmtheheight of the paper load 4: counter 5: Paper flap device 6: The electric eye sensor automatically lowers, and the paper output wind pressure adjustment function 7: The intelligent automatic waste discharge system automatically discharges uncut products to avoid scrapping due to paper jams.
