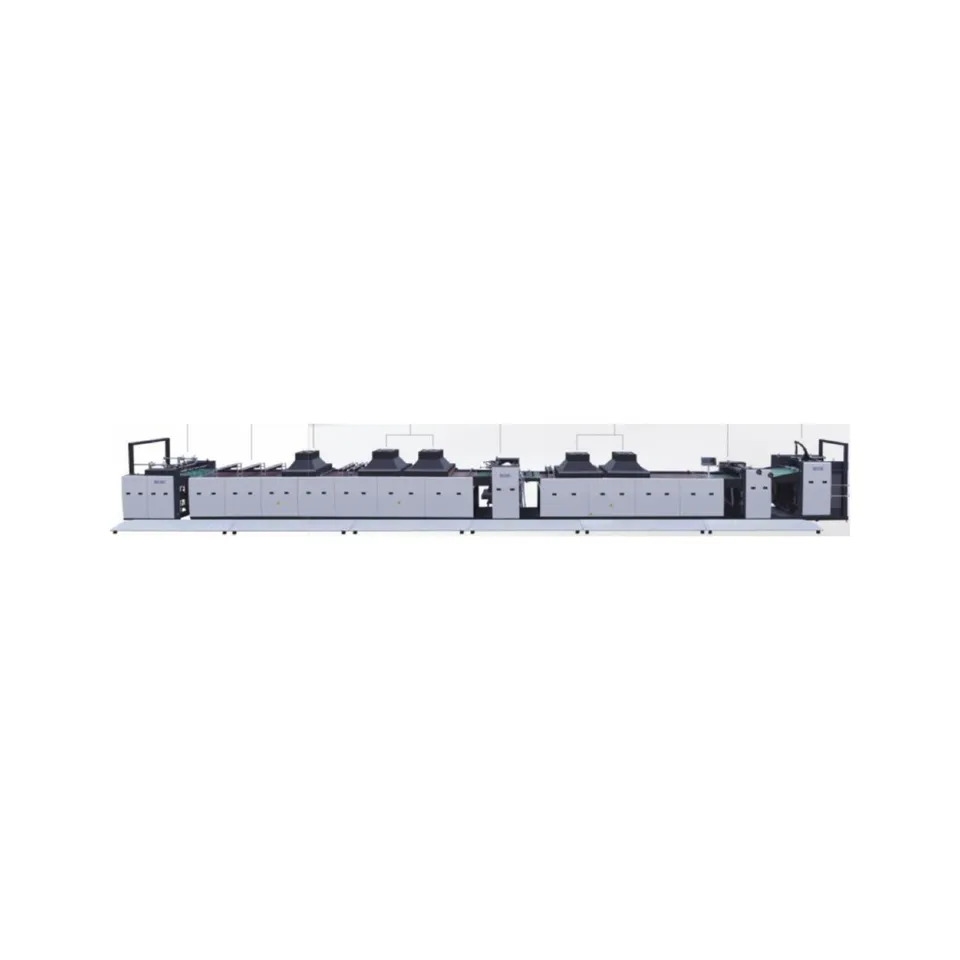

Online high-speed polishing machine

Introducing the Online high-speed polishing machine - the perfect solution for your high-volume laminating needs! This machine is designed to laminate documents, photos, and other materials at a speed of up to 100 sheets per minute, making it ideal for busy print shops and production environments.

Model:FHSGT-800B/1200B/1200B-L/1450B

Send Inquiry

Product Description

Introducing theOnline high-speed polishing machine- the perfect solution for your high-volume laminating needs! This machine is designed to laminate documents, photos, and other materials at a speed of up to 100 sheets per minute, making it ideal for busy print shops and production environments.

Product Parameter (Specification)

No	Item	Data
1	Model	FHSGT-800B/1200B/1200B-L/1450B
2	Max paper size	760*1050mm
3	Min paper size	270x270mm
4	Paper weight	80-450g/m2
5	Power	45kw
6	Total weight	6000kg
7	Overall dimension	1400016001800mm

Product Feature And Application

Main configuration and features

1.Automatic feeding section

Suitable for high speed feeding on both light & thick paper 2. Cating section Main casting struclure.Can choose double motors reversing or veering coating Optional;Straight spot cating configuration 3.IR hot-wind drying syatem Suitable for water-based coating,for efficient drying 4.UV curing section 5. Automatic stacker Suitable for high speed stacker of both light & thick paper. 6.Powder dusting(optional) 7.Customize A. Suits for matt vanish coating B.Corona unit C Anti-static bar

Product Details

High Speed

Easy to operate

Stream feeder

Servo-controlled pump

Electromagnetic heating

Stable and precise

1 year warranty

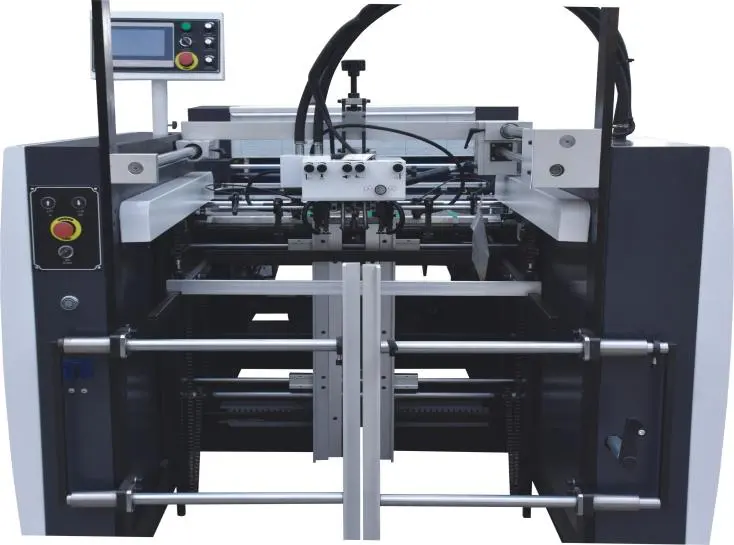

Auto feeding

1: Adopt high-speed offset press feeder (12000 sheets/hour) to ensure fast and stable operation

2: Paper photoelectric control, automatic lifting

3: Double protection feeder lifting safety

4: Using the latest paper stacker design, the entire tray can be pushed in, and the tray can be pushed in directly after printing, without manual paper sorting. Pre-stacker can also be used. two-way choice. Greatly save paper time and reduce the labor intensity of operators.

Coating section

(optional)

· Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
· Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by
photoelectric and mechanical systems. When no paper or paper break occurs, the machine will stop automatically for
self-protection.

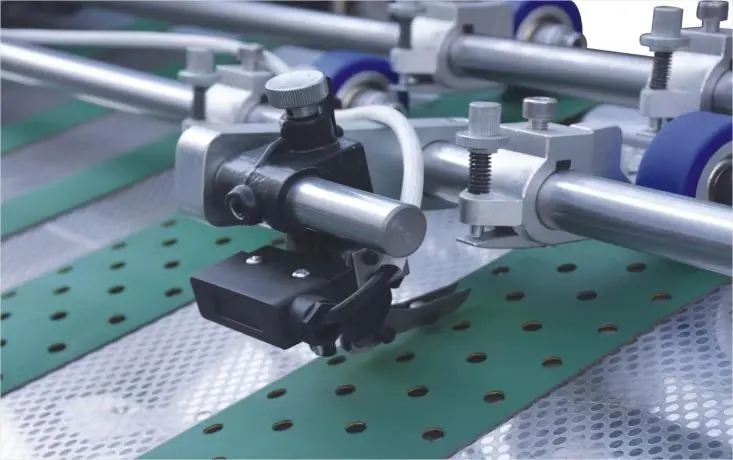

· Conveying table is furnished with air aspirator and front lay etc. to guarantee paper conveying and overlap stable and regular.
· High precision of chrome plated heating roller is equipped with oil circulation heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
· Pneumatic pressuring system provides automatically steady pressure to guarantee good laminating quality. The pressure is adjustable upon applications.
· Air expansion shaft releases film, and precisionizes film release, and also makes the loading and unloading of film roll more convenient.
· The combination of air expansion shaft and braking device can adjust film release tension and speed.
· Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
· Film perforating wheel perforates film edge for the automatic cut of laminated paper.
· Anti-curvature device: when going through the anti-curvature device, the laminated paper shall be leveled at once and won't curve again after cut.
· Pneumatic cutting system realizes automatic paper cut.
· Auto paper collector equipped with pat device stacks and tidies up cut paper. Patting frequency of pat device is adjustable.
