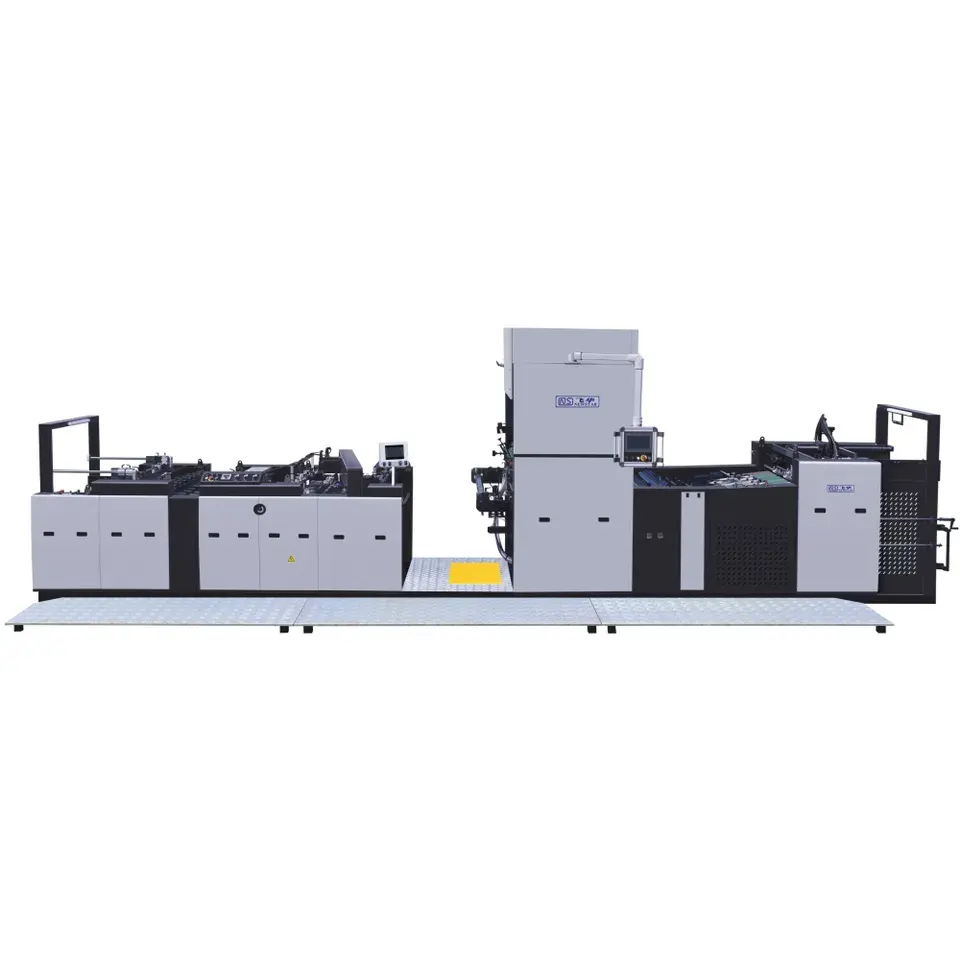

Automatic Hot knife Laminating Machine

Our Automatic Hot knife Laminating Machine is designed to provide efficient and reliable lamination for a wide range of materials. This machine is perfect for businesses that require high-volume lamination of documents, photos, and other materials.

Model:FHS-850/1050/1300

Send Inquiry

Product Description

Our factory specializes in manufacturing of Multifunctional Automatic laminating machine, NEW STAR was set up formally in2010, as one of the professional China Multifunctional Automatic laminating machine manufacturers and China Multifunctional Automatic laminating machine suppliers, we are strong strength and complete management. Also, we have own exporting license. We mainly deal in making a series of Multifunctional Automatic laminating machine and so on.

Automatic Hot knife Laminating Machine

The FHS series is a high-speed pre-coating model launched by our company, which is suitable for posters, books, information albums, posters, color boxes, color box packaging, handbags, etc.

Product Parameter (Specification)

No	Item	SGUV-1040A	SGUV-1200A
1	Max Laminating Paper	780*1050mm	1050*1050mm
2	Max Laminating Paper	270*240mm	300*300mm
3	Paper weight	80-500g/㎡	80-500g/㎡
4	Overlap error	±2mm	±2mm
5	Power	60Kw	65kw
6	Laminating speed	0-65m/min	0-65m/min
7	Electricity	25kw/h	28kw/h
8	Paper feed height	1150mm	1150mm
9	Paper stack height	1050mm	1050mm
10	Weight	7500kg	8000kg
11	Dimension	860018002000mm	860020002000mm

Product Feature And Application

1.Paper pre-stacker，to realize non-stop paper feeding and receiving
2.High degree of intelligence, one-button start and acceleration, more convenient and efficient than traditional segmented
control.
3.The shaft head is 55mm large, which is more stable and firmer than the traditional 35mm under high speed, without deformation, and good coating effect!
4.Synchronous belt transmission, the equipment is more stable, no jitter. The surface texture effect will be better in high-end products.
5：The oil guard has high precision, and it is more difficult for water to enter the bearing than the traditional one.
6：The air knife is easy to operate! High-precision correction, tight on both sides, no slight soft deformation and damage to the mesh belt.

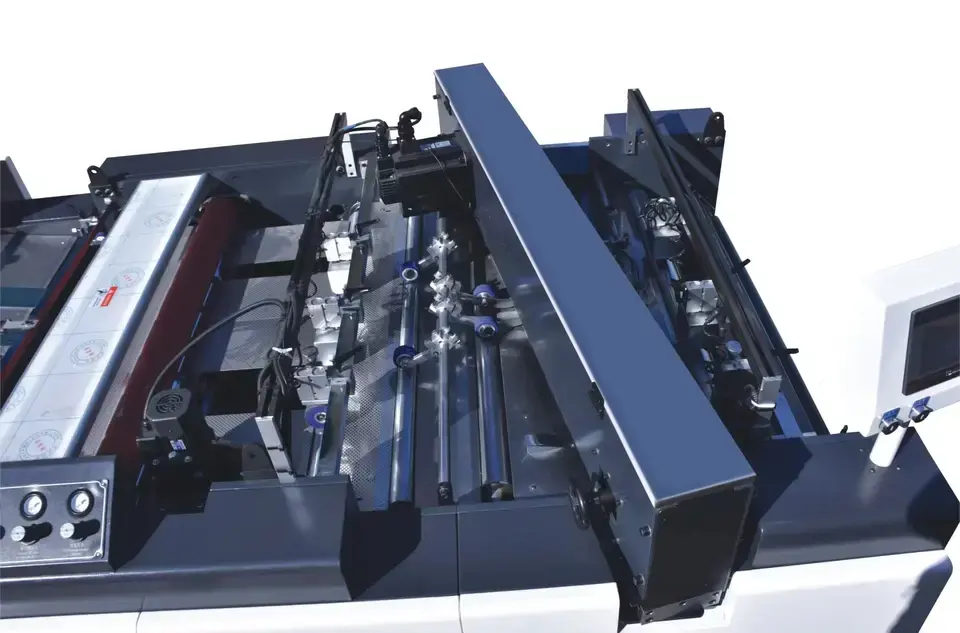

Product Details

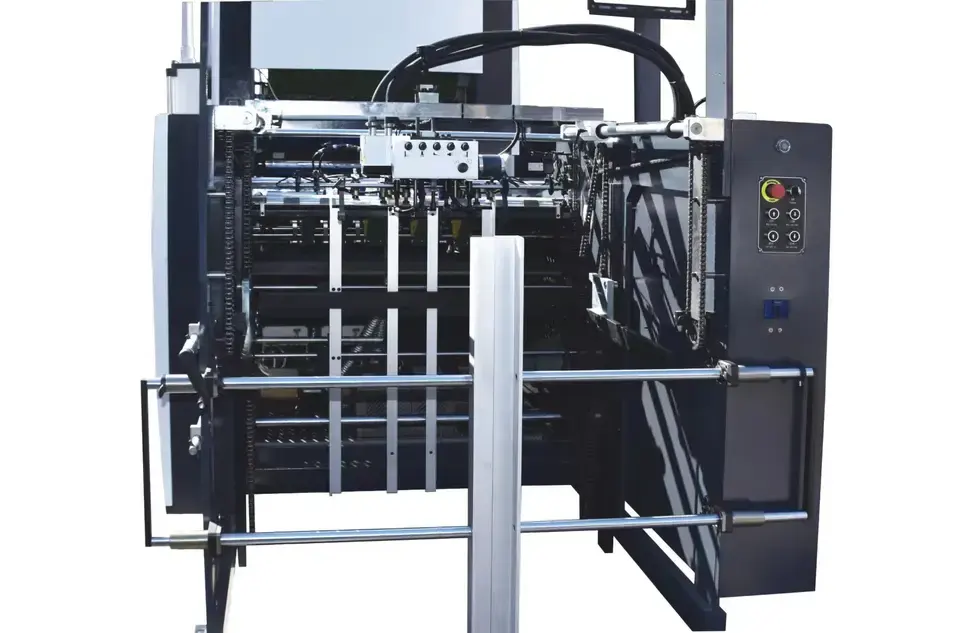

Automatic paper feeding system.	Dust removal and front guild system	Laminating system
1: pre-loading feeder 2: non-stopped feeder 3: big format feeder 4: sucking flat table 5: front guild 6: Servo has high precision 7: Anti-clutter magnet safety device	1: Mirror iron roller 2: Heating dust removal 3: Scraper cleaning powder 4: Synchronous belt drive	1: electromagnetic heating 2: film straigt roller 3: temperature meteroutside 4: automatic pressure 5: paper lacking and breaking system 6: Double-sided lamination (optional)

UV Dryer	Separation system	automatic paper stacker
1: sucking and outside air system 2: The UV part adopts 8-12KW adjustable electronic light source, which greatly improves the safety performance compared with the traditional voltage source light source, and can adjust the brightness of the light source automatically according to the change of the running speed of the machine, which can be changed from 30% to 100%. The average energy consumption is saved by more than 30%.	1: back perforating system 2: high speed rotation knife 3: anti-curvev system 4: pneumatic perforating cutting system 5: slot for the separating roller	1: vacuum sucker flat ,belt width 10cm 2: non-stop feeding 3: 850mmtheheight of the paper load 4: counter 5: Paper flap device 6: The electric eye sensor automatically lowers, and the paper output wind pressure adjustment function 7: The intelligent automatic waste discharge system automatically discharges uncut products to avoid scrapping due to paper jams.
